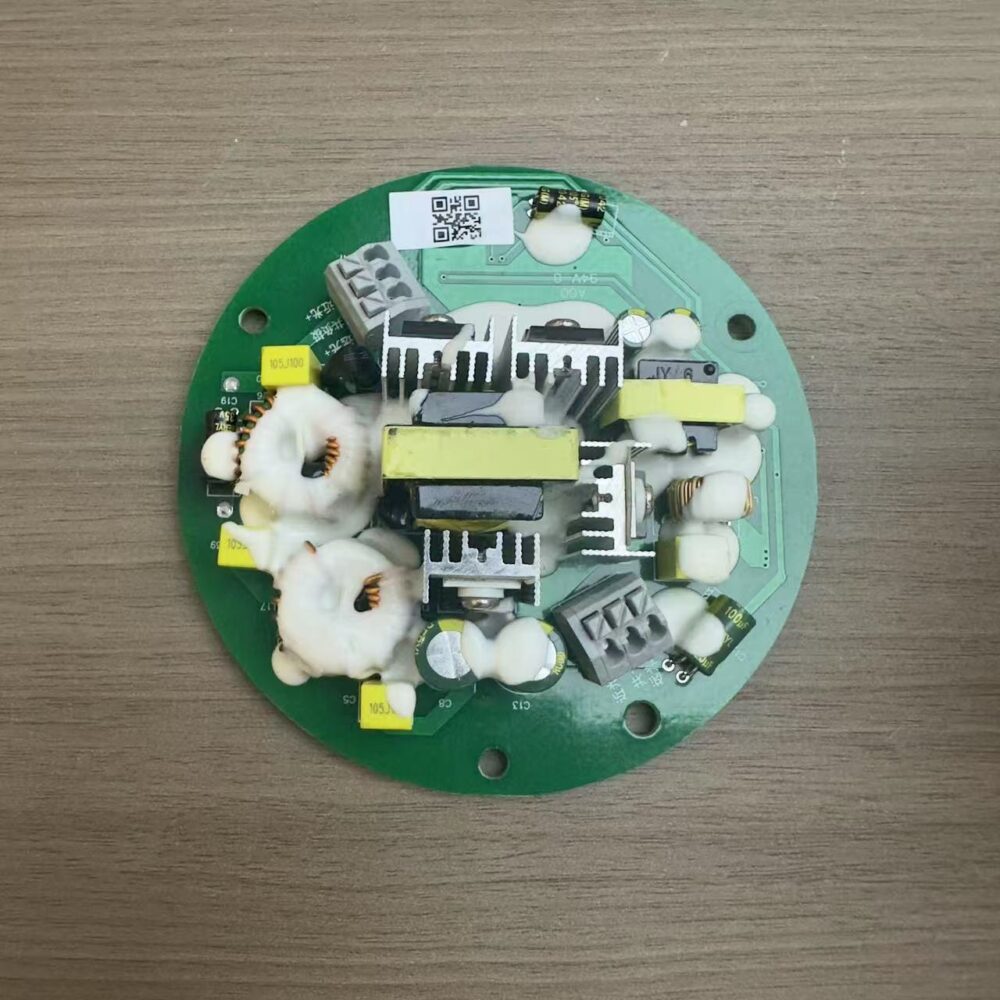

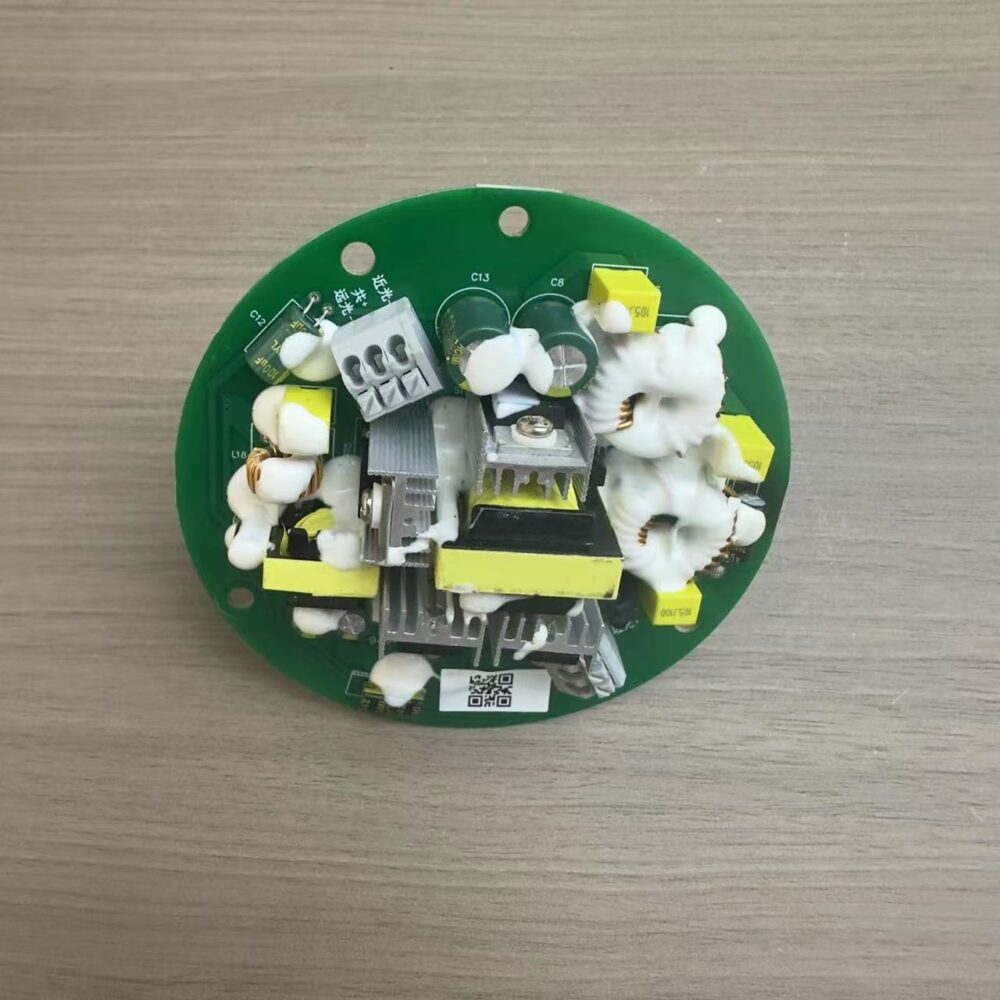

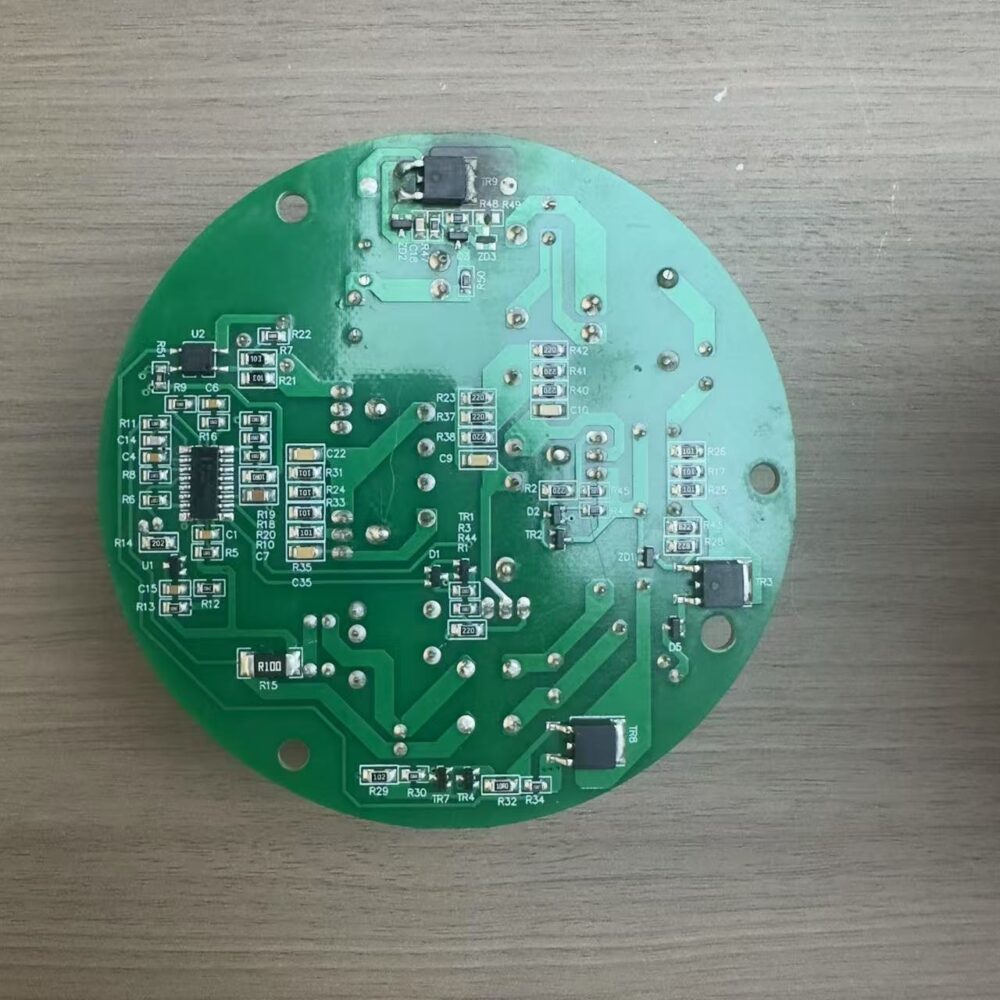

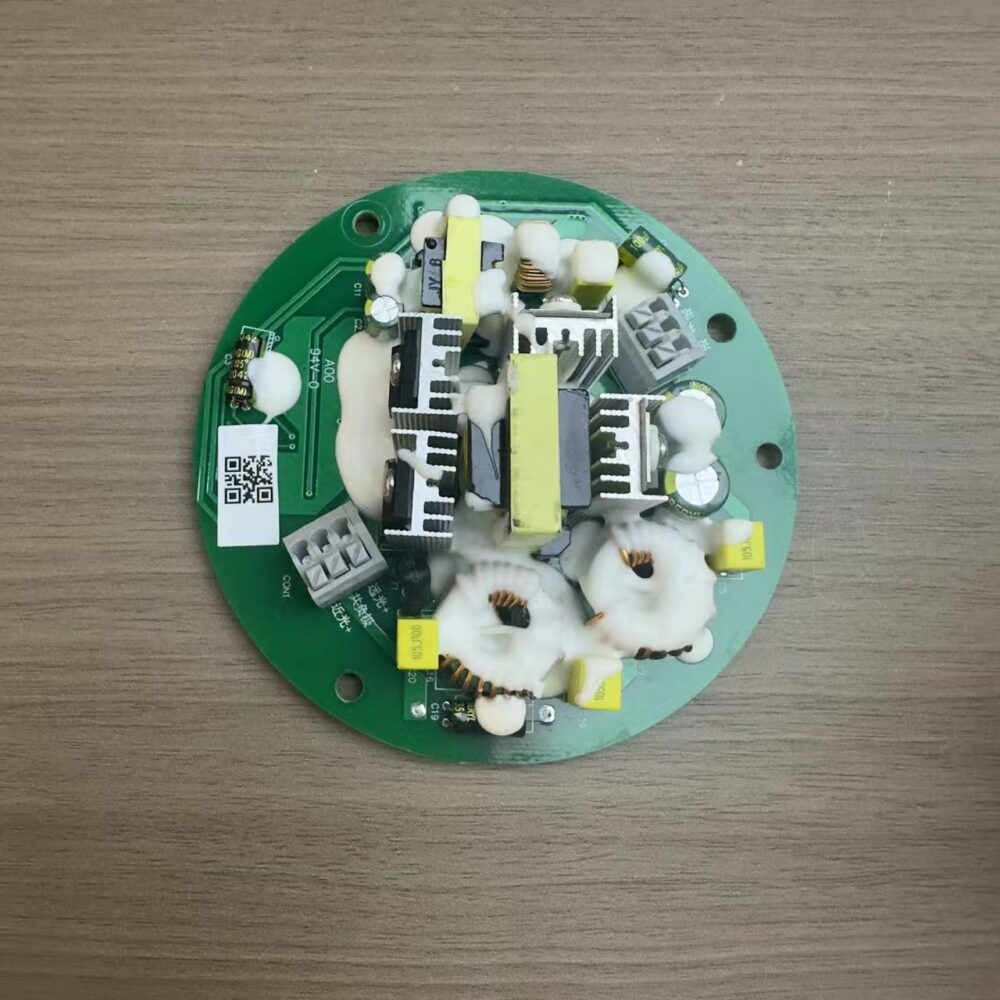

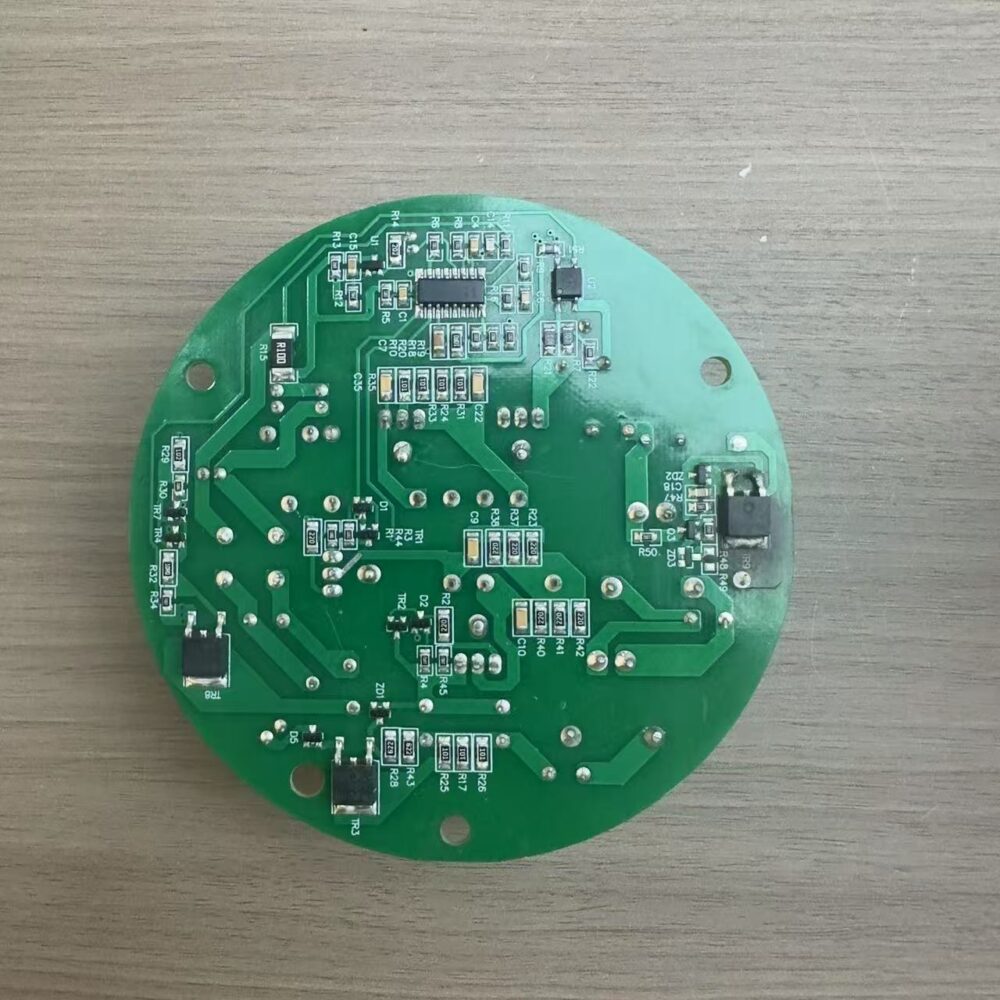

Water Dispenser PCBA

The PCBA (Printed Circuit Board Assembly) of a water dispenser is the core electronic control component of the water dispenser. It is mainly responsible for realizing the intelligent control of the heating, cooling, and heat preservation functions of the water dispenser. The following is a detailed introduction from the aspects of function, composition, and characteristics:

Main functions

• Heating control: Accurately adjust the heating temperature (such as 95℃ boiling or 85℃ warm water) and maintain the heat preservation state to avoid repeated heating.

• Refrigeration control: Control the operation of the compressor or semiconductor refrigeration chip to reduce the water temperature to the set low temperature (such as 5℃-10℃) to meet the demand for iced drinking water.

• Safety protection: It has functions such as anti-dry burning protection (automatically cuts off the power when the water level in the water tank is insufficient) and overheating protection (stops heating when the temperature is abnormal).

• Human-computer interaction: Mode selection (heating/cooling/heat preservation), temperature display, fault prompts, etc. are realized through panel buttons or touch screens.

Core composition

• Main control chip: coordinate the work of various components, receive user instructions and execute corresponding control logic (such as timed heating and energy-saving standby).

• Heating circuit: connect the heating tube, control the on and off through relays or thyristors, and achieve constant temperature control with temperature sensors.

• Refrigeration circuit: if it is compressor refrigeration, it includes compressor drive circuit; if it is semiconductor refrigeration, it includes TEC (thermoelectric cooler) drive module.

• Sensor circuit:

◦ Temperature sensor (such as NTC thermistor): real-time monitoring of water temperature and feedback to the main control chip.

◦ Water level sensor: detect the water level in the water tank to prevent dry burning.

• Power supply circuit: convert 220V AC into 5V, 12V and other DC power to power the chip and circuit module.

• Display and button circuit: corresponding panel indicator light, digital screen or touch screen to achieve operation feedback.

Features

• Waterproof and moisture-proof design: due to the proximity to water sources, PCBA usually uses waterproof glue coating (three-proof paint) to prevent water vapor from corroding the circuit.

• Energy-saving optimization: support standby low power consumption mode, automatically enter the insulation/standby state after heating/cooling reaches the set temperature, reducing energy consumption.

• Safety redundancy: Multiple protection circuits (such as fuses, overcurrent protection) ensure power safety and prevent short circuits or overloads from causing failures.

Application scenarios

Widely used in household water dispensers, commercial direct drinking machines, office multi-function water dispensers and other equipment, it is a key component for realizing automatic control of cooling and heating of water dispensers, and its stability directly affects the user experience and safety of the equipment.
