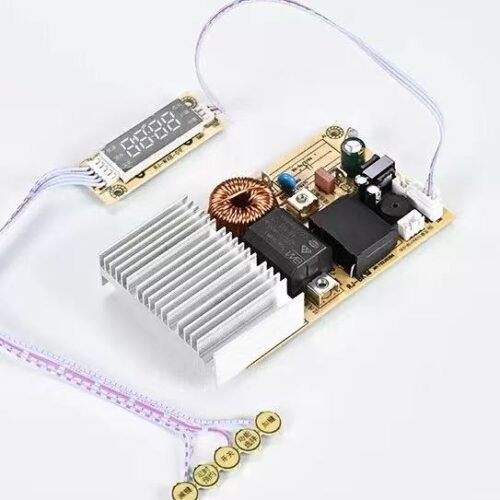

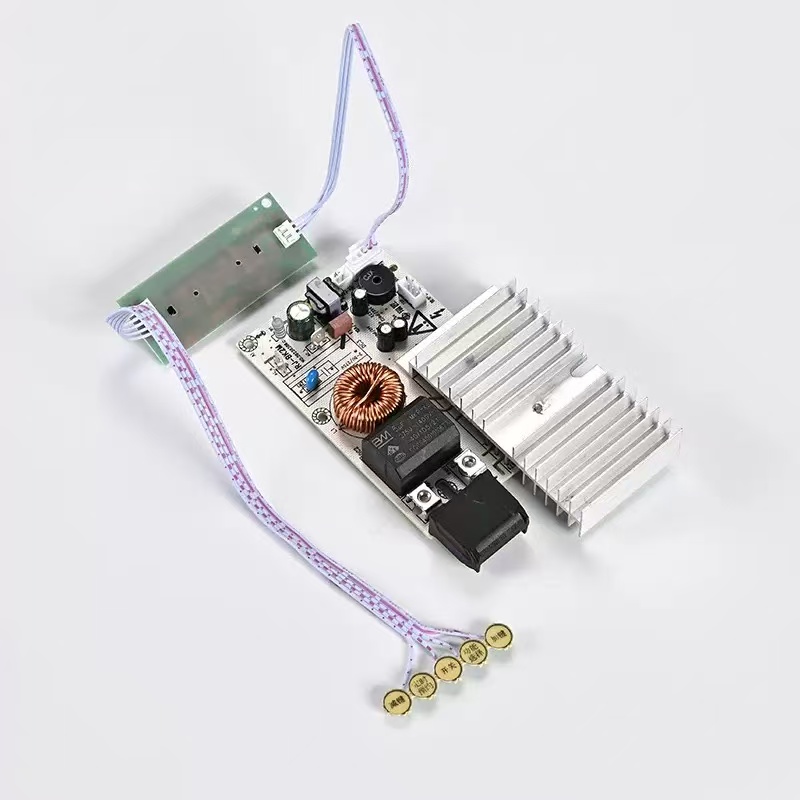

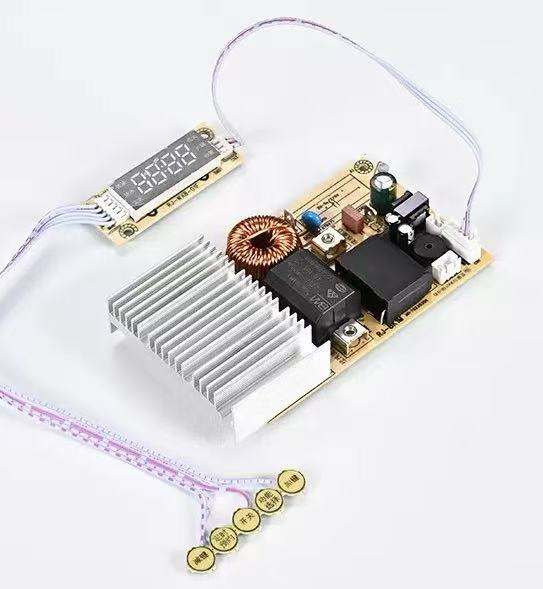

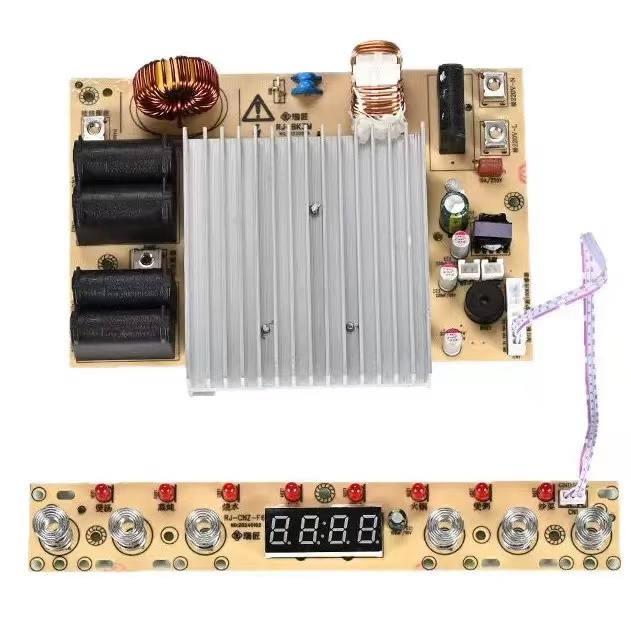

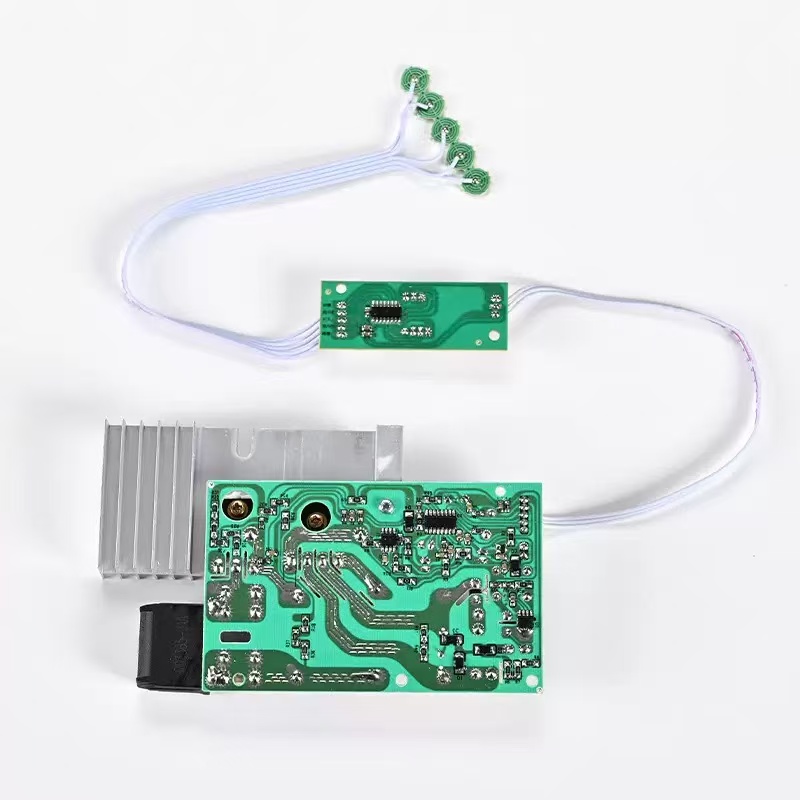

Rice Cooker Control Board PCBA

The rice cooker control board PCBA is the core control component of the rice cooker, which is used to realize various functions and intelligent control of the rice cooker. The following is its introduction:

Hardware composition

• Main control chip: usually a microcontroller (MCU), which is the “brain” of the control board, responsible for executing preset programs and algorithms, coordinating the work of various components, and controlling the working status of the heating element according to different working modes and sensor feedback information.

• Power supply circuit: converts the mains power into the stable DC voltage required by the control board, powers each chip and circuit module, and generally has overvoltage and overcurrent protection functions to ensure the safe and stable operation of the control board.

• Display circuit: composed of liquid crystal display (LCD) or light-emitting diode (LED), etc., used to display the working status, cooking time, temperature and other information of the rice cooker, so that users can understand the cooking process.

• Key input circuit: including membrane keys or touch keys, which is the interface for users to interact with the rice cooker. Users input instructions through keys, such as selecting cooking mode, setting time, adjusting power, etc.

• Temperature detection circuit: Use temperature sensor to monitor the temperature in the pot in real time, convert temperature signal into electrical signal and transmit it to main control chip, which controls the operation of heating element according to temperature information to achieve precise temperature control.

• Heating control circuit: Mainly composed of power driver chip and relay, etc., it controls the on/off and heating power of heating element according to the instruction of main control chip to achieve different cooking functions.

Working principle

• After the user selects cooking mode and sets relevant parameters through key input circuit, the main control chip drives the heating element to start working through heating control circuit according to preset program and algorithm. During cooking, temperature detection circuit monitors the temperature in the pot in real time and feeds back temperature signal to main control chip. Main control chip compares actual temperature with preset temperature, and keeps the temperature in the pot within appropriate range by adjusting the output of heating control circuit. At the same time, display circuit displays current working status and related information in real time. When cooking time ends or preset cooking conditions are reached, main control chip controls heating element to stop working and sends out prompt to inform user.

Features

• Multiple cooking modes: It has multiple preset cooking modes, such as cooking rice, porridge, soup, and heat preservation, etc., to meet different cooking needs.

• Accurate temperature control: Using high-precision temperature sensors and advanced control algorithms, the temperature in the pot can be accurately controlled to ensure the cooking effect.

• Safety protection function: It has multiple safety protection mechanisms, such as overheating protection, overvoltage protection, leakage protection, etc., to prevent safety accidents.

• Intelligent operation: Some rice cooker control board PCBAs also have intelligent functions, such as fuzzy control, automatic heat preservation, reservation function, etc., to improve user experience.

Application field

• It is widely used in home kitchens and is a key component for rice cookers to realize automatic cooking. In addition, it is also used in some small catering places and collective canteens, providing people with convenient and fast cooking methods.
