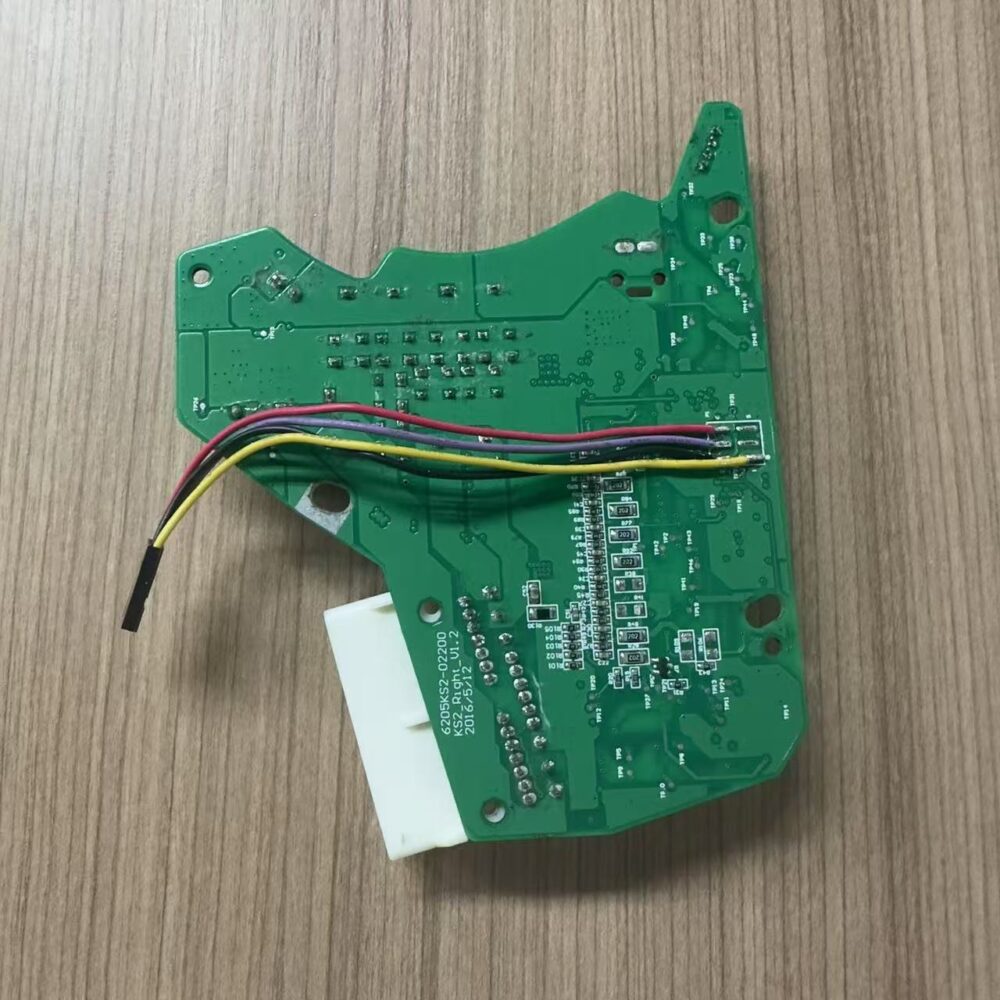

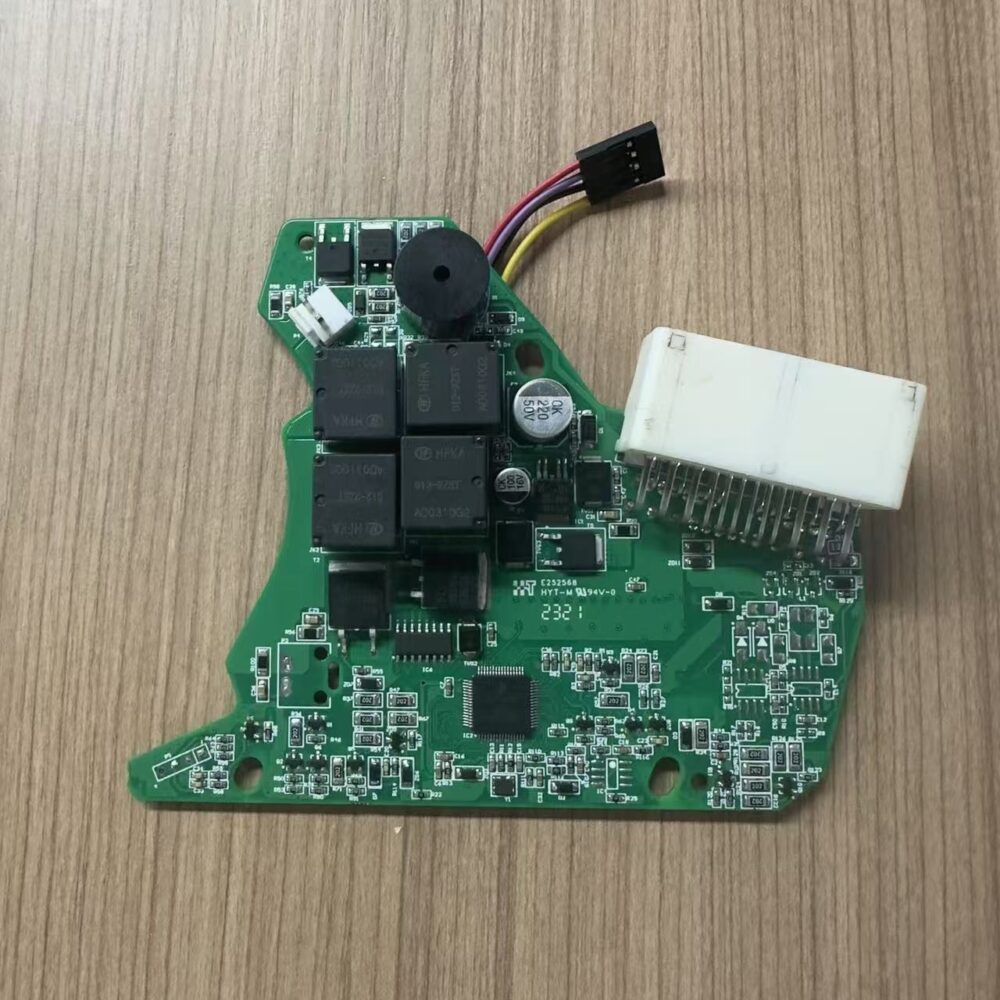

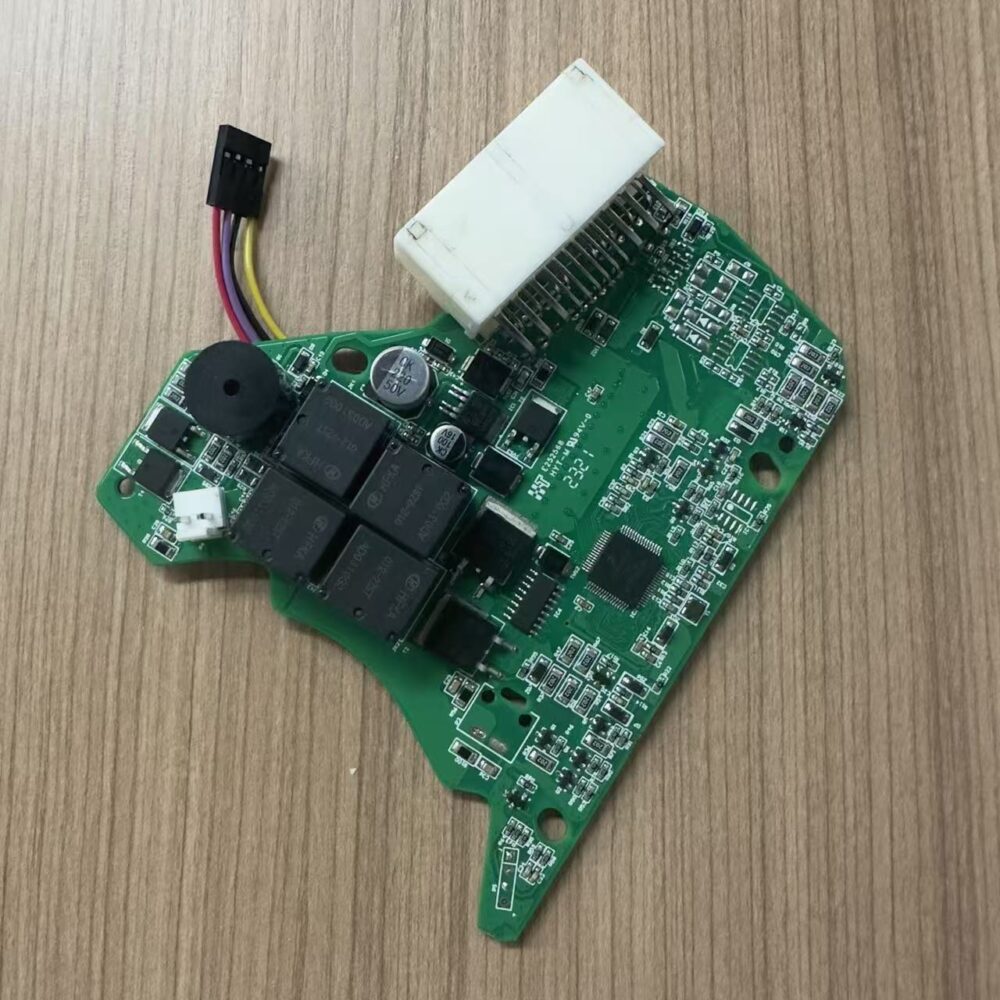

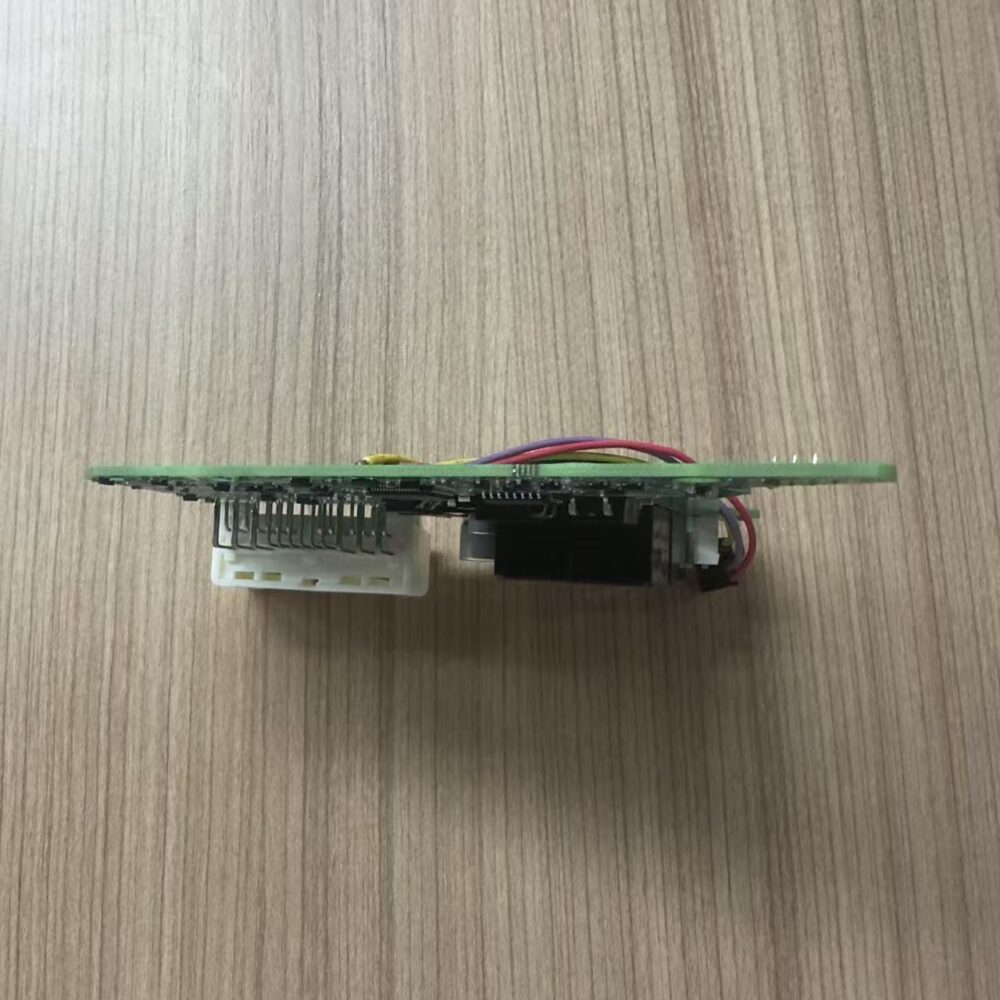

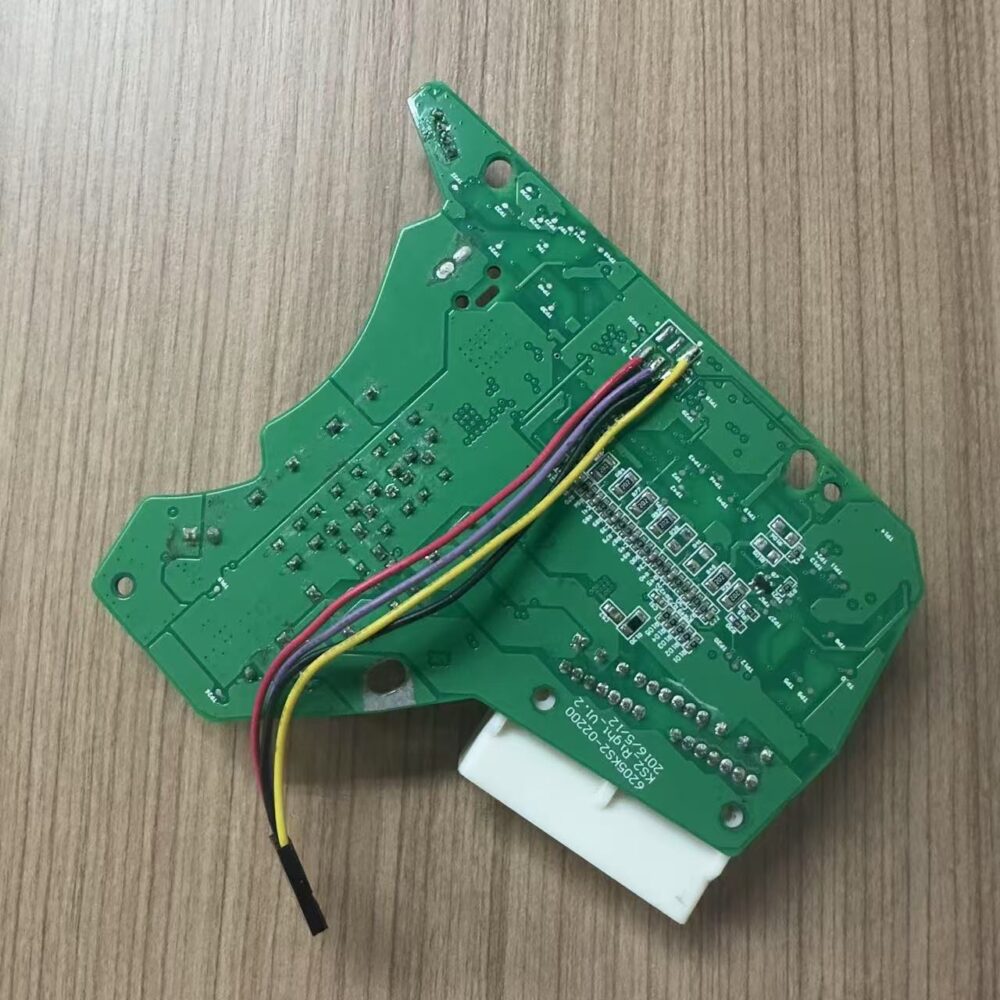

Refrigerator PCBA

The refrigerator PCBA (Printed Circuit Board Assembly) is the core component for realizing intelligent control and functional coordination of refrigerators. It is mainly responsible for temperature monitoring, component control, human-computer interaction, and network communication. The following is a detailed introduction from the aspects of function, composition, technical characteristics, and application scenarios:

Core functions

• Precision temperature control

◦ Collect temperature sensor data (such as NTC thermistor) of the refrigerator, freezer, and variable temperature room, and adjust the compressor start and stop and fan speed through the PID algorithm to maintain temperature fluctuation ≤±1℃ (high-end models can reach ±0.5℃).

◦ Support quick freezing mode (compressor runs at full load to quickly cool down), energy-saving mode (low-frequency operation to reduce power consumption), and some models can be linked to door switch detection (alarm when the door is opened for more than 30 seconds) to reduce cold loss.

• Multi-component collaborative control

◦ Compressor: adjust the speed (1500~4500rpm) through the variable frequency drive circuit (such as IPM intelligent power module) to adapt to different load requirements (such as automatically improving refrigeration efficiency during high temperatures in summer).

◦ Solenoid valve and damper: control the flow direction of refrigerant (independent circulation of refrigeration/freezing), adjust the damper opening (such as closing the damper when the temperature of the refrigerator compartment reaches the standard to avoid over-refrigeration).

◦ Defrosting system: trigger heating wire defrosting by timing (every 8~12 hours) or by the amount of frost to prevent the evaporator from freezing and affecting refrigeration, and automatically stop the compressor operation during defrosting to improve energy efficiency.

• Intelligent interaction and safety protection

◦ The touch screen/LED screen displays real-time temperature and operation mode (such as “fruit and vegetable preservation” and “mother and baby mode”), and supports gesture sensing (waving to open the door, adjusting the temperature).

◦ Fault self-diagnosis: detect overcurrent, overvoltage, sensor abnormality (such as displaying “F01” means the refrigerator compartment temperature sensor is faulty), and alarm through the buzzer and prompt the maintenance plan on the screen.

◦ Safety protection: compressor start delay (to prevent damage due to frequent start and stop), overheating protection (forced shutdown when the temperature is greater than 85℃), and some models have built-in leakage protection circuit.

• Networking and intelligent functions (PCBA dedicated to smart refrigerators)

◦ Support Wi-Fi/Bluetooth connection to mobile phone APP, remotely adjust temperature, view energy consumption data (such as daily average power consumption of 0.8kW·h), and receive reminders of expired ingredients (scan the code to enter the shelf life of ingredients).

◦ Linkage with smart home: voice interaction with smart speakers (such as “set the freezer temperature to -18℃”), or connect to the home gateway to achieve scene linkage (such as automatically brightening the kitchen light when the door is opened).

Main components

• Main control chip (MCU)

◦ Adopt 8-bit/32-bit microcontroller (such as STMicro STM32, Renesas RL78), main frequency 20~72MHz, built-in ADC channel (collect temperature analog signal), PWM interface (control fan speed).

◦ High-end models integrate ARM Cortex-M4 core, support floating-point operations (optimize temperature control algorithm), and reserve UART interface to connect Wi-Fi module (such as ESP8266).

• Power management circuit

◦ Input: AC 220V is stepped down to DC 12V/5V by a transformer, and the MCU and sensor are powered by an LDO voltage regulator chip. The DC-DC converter provides high voltage (such as 150V~300V) for the variable frequency drive circuit.

◦ Energy-saving design: Standby power consumption is less than 1.5W, and non-essential circuits are turned off in sleep mode (such as screen backlight off), which complies with the EU ERP energy efficiency standard.

• Sensor and drive module

◦ Temperature sensor: NTC thermistors (accuracy ±0.5℃) are distributed in each chamber, and some models add humidity sensors (maintaining the humidity of the refrigerator compartment at 60%~80%).

◦ Drive circuit: IPM module (such as Mitsubishi PM25RSB120) drives the compressor frequency conversion, relay controls the solenoid valve and the heating wire on and off, and the optical coupler isolates the strong and weak electricity (to prevent interference).

• Display and interactive interface

◦ Capacitive touch screen (3.5~7 inches): RGB interface connects to MCU, supports icon-based operation interface; key matrix (4×4 keys) is used for basic function adjustment.

◦ Communication interface: SPI/I2C connects to display driver chip, USB interface is used for firmware upgrade (such as updating temperature control algorithm).

• Protection and anti-interference components

◦ Varistor (suppresses surge voltage), fuse (melts when current＞5A), EMI filter circuit reduces electromagnetic interference during frequency conversion (complies with CISPR 32 certification).

Technical features

• High reliability and environmental adaptability

◦ Working temperature: -10℃~60℃ (PCBA inside the refrigerator needs to be resistant to low temperature, and some components need to pass -40℃ aging test), humidity ≤95%RH without condensation.

◦ Long life design: electrolytic capacitors use 105℃ temperature-resistant models (life ≥10 years), and the number of relay contact switching times is ≥100,000 times.

• Energy saving and low power consumption optimization

◦ Frequency conversion technology: The power consumption of the compressor is reduced by 30%~50% compared with the fixed frequency model (such as the average daily power consumption of a 200L refrigerator ≤0.5kW·h), and some PCBAs support power factor correction (PFC), which improves the power efficiency to more than 90%.

◦ Sleep mechanism: The screen backlight automatically turns off after 3 minutes of no operation, and the sensor wakes up intermittently (collecting temperature every 10 seconds), reducing standby power consumption.

• Integration and scalability

◦ The single PCB integrates the main control, drive, and display interfaces, with an area of ​​≤100cm² (compact design adapts to small spaces); GPIO pins are reserved (such as expansion of ice makers and water making module control).

◦ Support modular development: The Wi-Fi module is pluggable and replaceable (such as upgrading from 2.4GHz to Wi-Fi 6), adapting to different market needs (domestic focus on smart networking, overseas focus on basic temperature control).

Differences in application scenarios and models

• Household refrigerators

◦ Traditional fixed-frequency refrigerators: PCBA functions are simplified, mainly driven by temperature control + basic components, with low cost (PCBA material cost is about 50~100 yuan), suitable for economical models.

◦ Smart variable-frequency refrigerators: integrated Wi-Fi module, large touch screen, support food management (scan code to enter expiration reminders), remote temperature control (such as lowering the freezer temperature when on a business trip to save energy), PCBA cost is about 200~500 yuan.

• Commercial refrigerators

◦ Supermarket display cabinets: PCBA supports independent control of multiple temperature zones (2℃~8℃ in the refrigerated area, -18℃~-22℃ in the frozen area), and links the door curtain motor (automatically starts the wind curtain when the door is opened), with strong anti-interference ability (adapting to the complex electromagnetic environment of the shopping mall).

◦ Medical refrigerators: higher accuracy requirements (temperature fluctuation ≤±0.5℃), PCBA built-in dual sensor redundancy design (automatic switching of the main and standby sensors), and support GPRS remote alarm (SMS notification of administrators when the temperature is abnormal).

• Special scenarios

◦ Car refrigerator: PCBA supports wide voltage input (12V/24V DC), anti-vibration design (components pass 50Hz~2000Hz sweep frequency test), and is suitable for the bumpy environment of the car.

Differences from other home appliance PCBAs

The core difficulty of refrigerator PCBA lies in the stability in low temperature environment and the accuracy of frequency conversion control:

• Compared with air conditioner PCBA, refrigerator PCBA has lower operating temperature (some components need to withstand -40℃), smaller compressor power (usually ≤300W), and the drive circuit focuses more on low power consumption design.

• Compared with washing machine PCBA, refrigerator PCBA has higher requirements for sensor accuracy (temperature control directly affects the freshness of food), and needs long-term continuous operation (annual average startup 365 days), and more stringent reliability design (such as component derating, rated current is designed at 70%).

When designing, the PCBA solution needs to be customized according to the refrigerator volume, refrigeration method (direct cooling/air cooling), and variable frequency/fixed frequency requirements. For example, an air-cooled variable frequency refrigerator with a capacity of more than 300L needs a PCBA that supports independent control of dual evaporators, while a small mini refrigerator PCBA can be simplified to a single MCU+relay drive.
